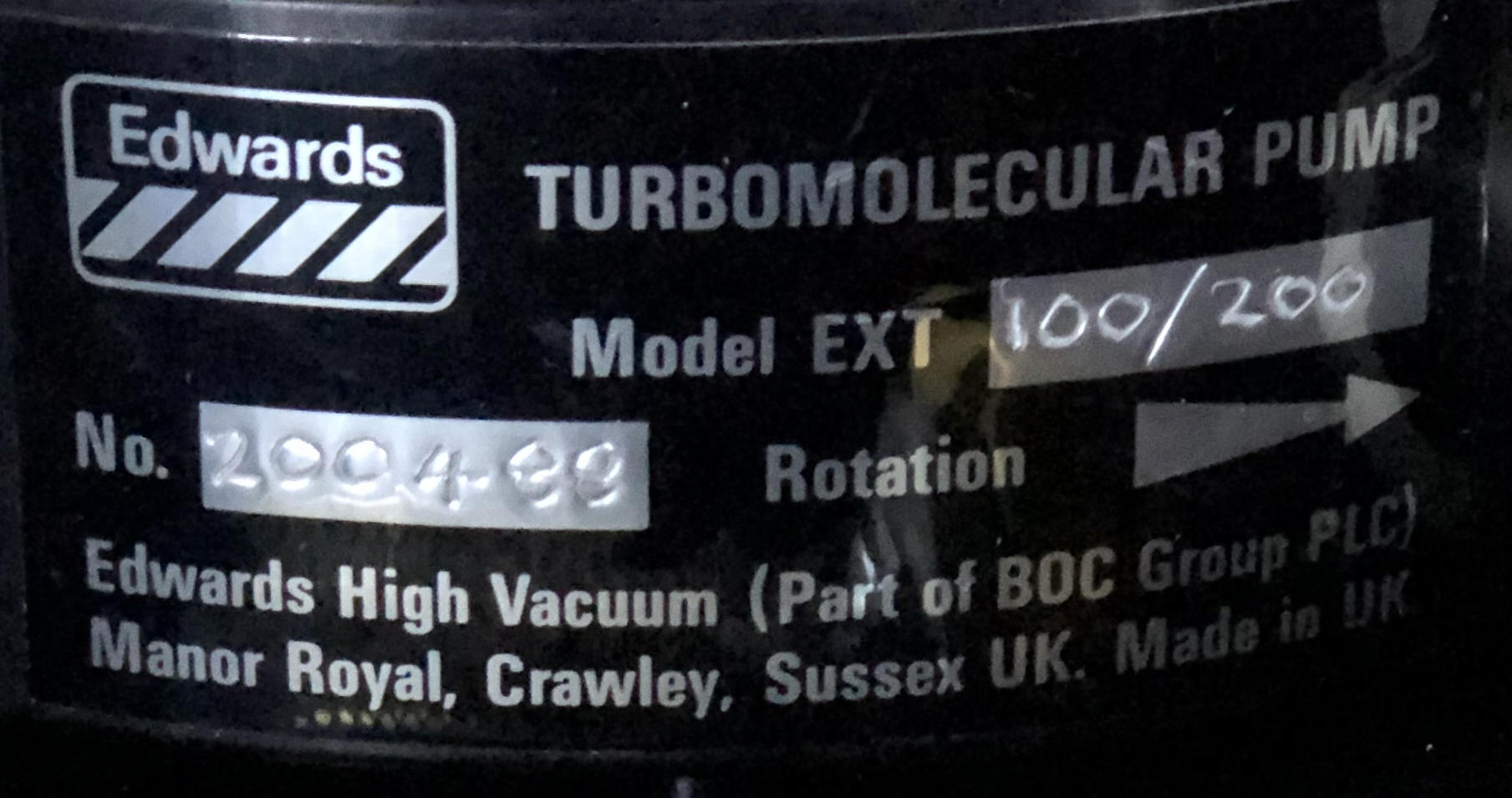

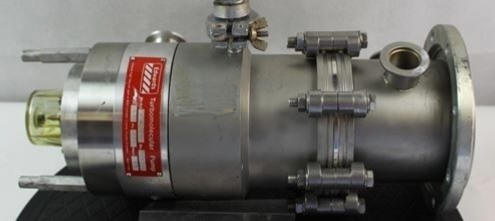

Edwards Turbomolecular Pump EXT 100/200 with controller

used 145.12hours, tested

Serial  # 200499

pumping speed:                     l∙s-1
N2                                          200
He                                          185
H2                                          175

Ultimate vacuum                    2∙10-9

Max power load [kW]            0.26

Cooling water [l h-1]               20        (0.33 l/min)

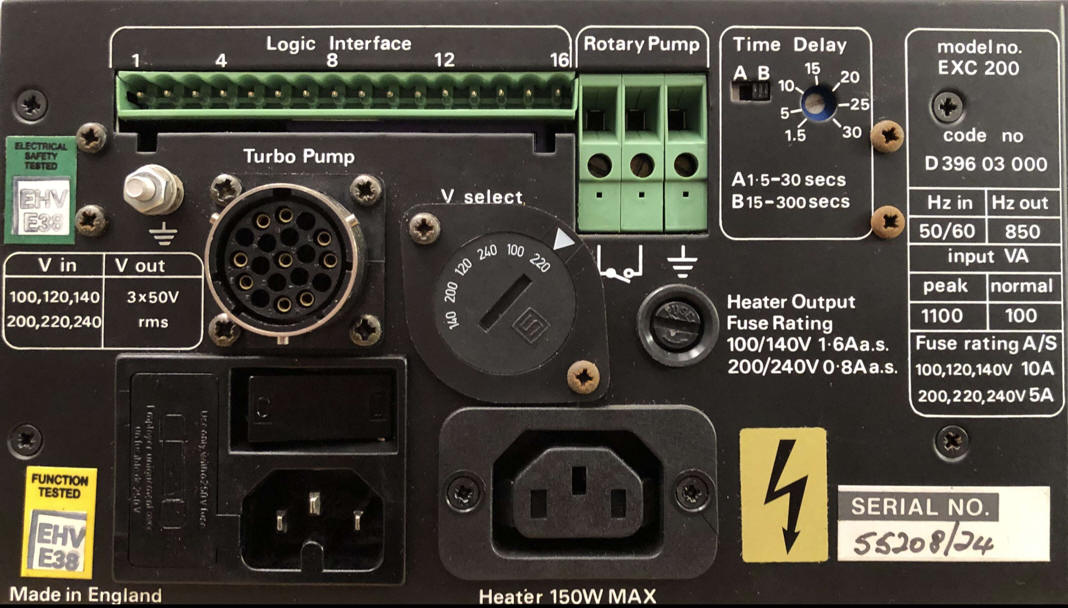

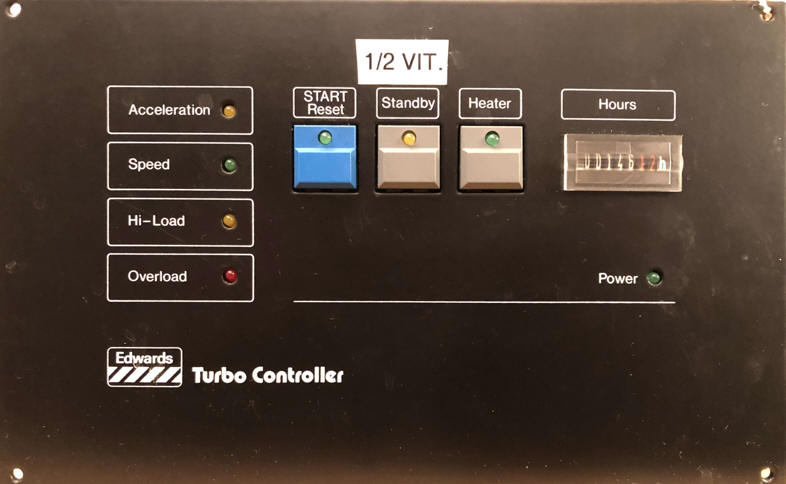

Edwards Turbopump controller EXC200

Serial # 55208/24

 Electrical Supply Voltage: 100-240V
Maximum Output Power Peak: 778W
Heater Power: 150W
Voltage Out: 3x 50V
Ambient Temperature Range: 0-40C



Complete with cable and manuals

Air to water cooler available
